SuperCrane™ C4 compact crane
C4 compact crane - multifunctional compact crane

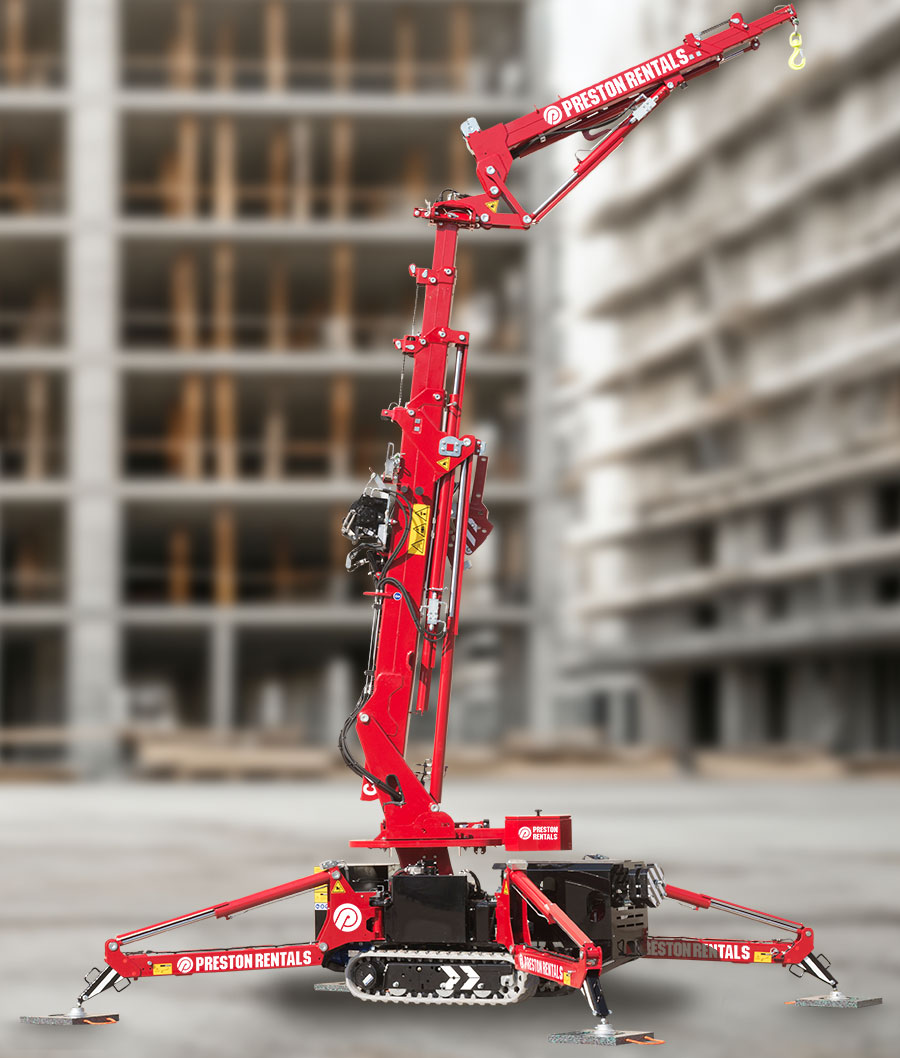

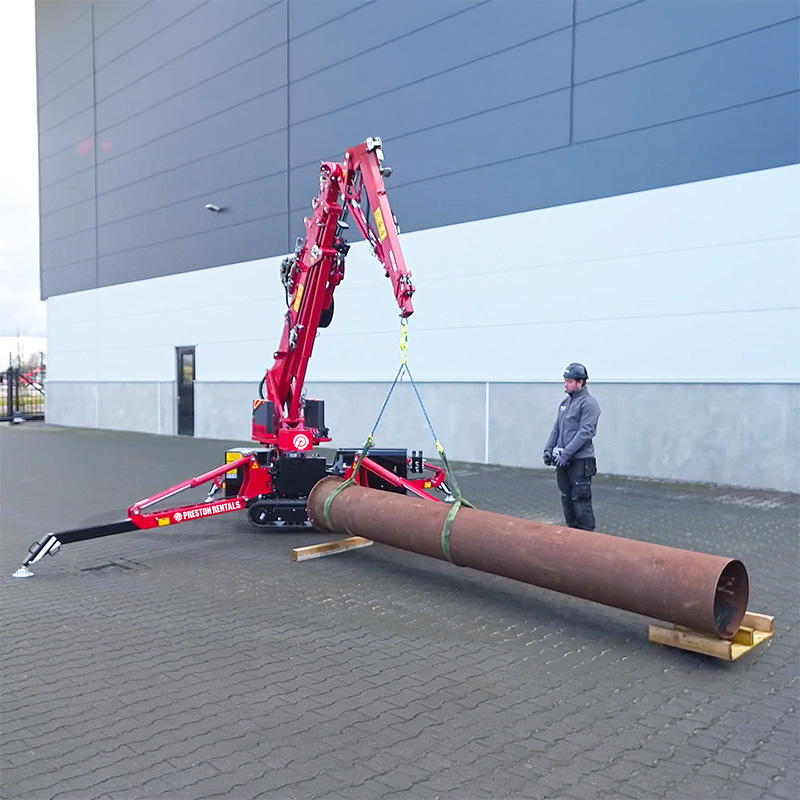

SuperCrane™ C4 compact crane is an ultra-stable, robust compact crane that lifts up to 2 tons. Its transport flexibility is thanks to its expandable crawling tracks (75 to 110 cm) and its low centre of gravity.
Quite a capacity for such a compact crane.

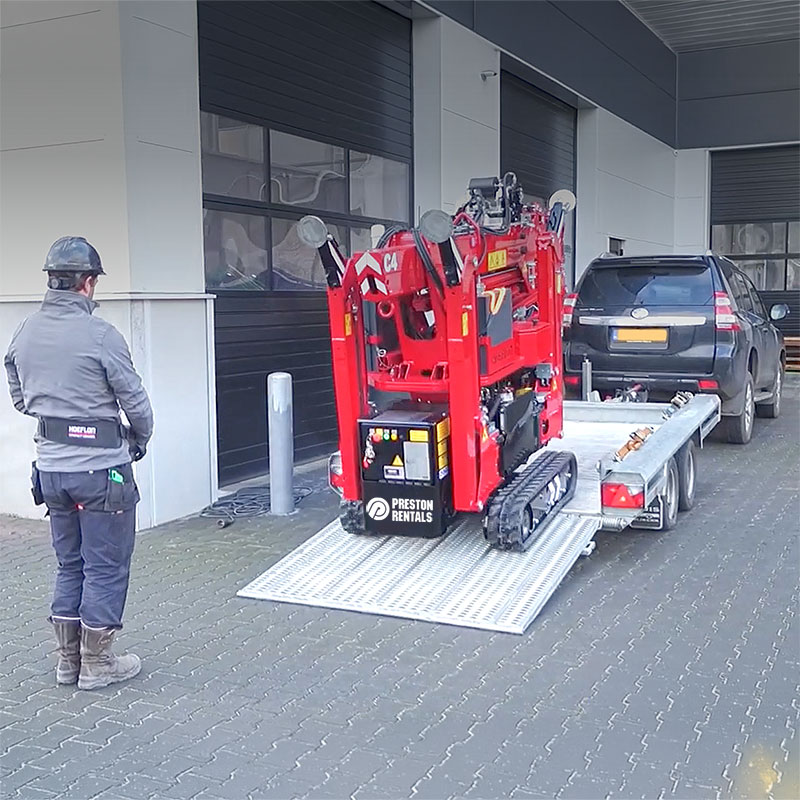

In addition, its new weight is so low that you can easily transport it on a trailer for vehicles with a reduced towing capacity. Finally, its compact dimensions mean you can take it anywhere.
Available as both a hybrid (diesel + electric) and as a pure Power battery crane.

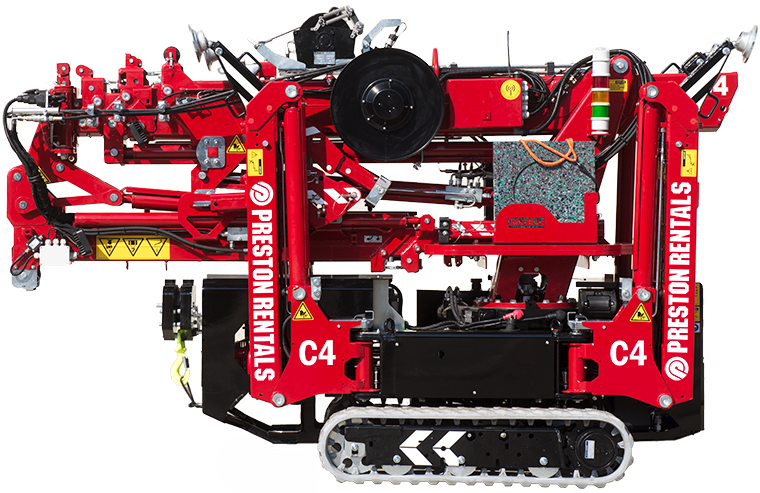

SuperCrane™ C4 compact crane
The C4 is now also fully electric. With a 60% work cycle, you can use the crane for eight hours. The crane charges in five hours. Charging and working at the same time is also possible. The electric version doesn't lose any speed compared to the diesel version, it's even runs a bit smoother.
The used battery cell is LiFePO4. This composition has many advantages. Especially the safety in comparison to other Li-ion batteries. LiFePO4 battery cells cannot ignite or explode during charging/discharging. The battery has a long service life and can often be discharged and recharged with minimal performance reduction. This composition is environmentally friendly because it does not contain toxic heavy metals. The cell also tolerates exposure to high temperatures.
This makes the C4 strong:
-
Passing through an inside door
-
Can be used on the top floor
-
Radio control
-
White crawler tracks available
-
Electricity and/or fuel.
Specifications
2350 kg
Maximum outreach:
11.7 m x 144 kg
Maximum lifting height:
9.7 og 14.6 m including options
Dimension:
L: 2.8 m x B: 0.75 – 1.1 m x H: 1.82 m
Dimensions incl. winch and jib:
L: 3.04 m x B: 0.75 m x H: 1.95 m
Total weight:
1900 kg – and including options 2150 kg
Ground pressure:
0.59 kg/cm2
Equipment
Electric motor:(50Hz):
230 V
Fly jib:
4.3 m
Winch:
40 m
Tracks:
non-marking
Lighting:
Work lamp on boom and fly-jib
Stepless swiveling outriggers:
0 – 90°
