SuperCrane™ C30e compact crane
100% electric “Start and Operate” full lithium powered pick & carry C30e compact crane
The SuperCrane™ C30e compact crane is a ”State of the art” crane with easy operation and endless possibilities due to its very intelligent software. The C30e has endless rotation, stepless outrigger positioning and various outriggers.
We are proud to present the Hoeflon C30e crane - a fully lithium driven “pick ‘n’ carry” crane. Hoeflon is ready for the future. SuperCrane™ C30e compact crane is a “state of the art” crane with an easy operation. The possibilities are endless due to the crane’s very intelligent software making it possible for the driver only to focus on the lifting work.
SuperCrane™ C30e compact crane
SuperCrane™ C30e compact crane is a crane with a continuous joystick adjustment option. Each leveling lifter calculates its position to determine the hoisting capacity. Its low centre of gravity and expandable crawler undercarriage make it particularly suitable for maneuvering on a slope. The crane is equipped with sloping crawler supports for a large ground clearance.

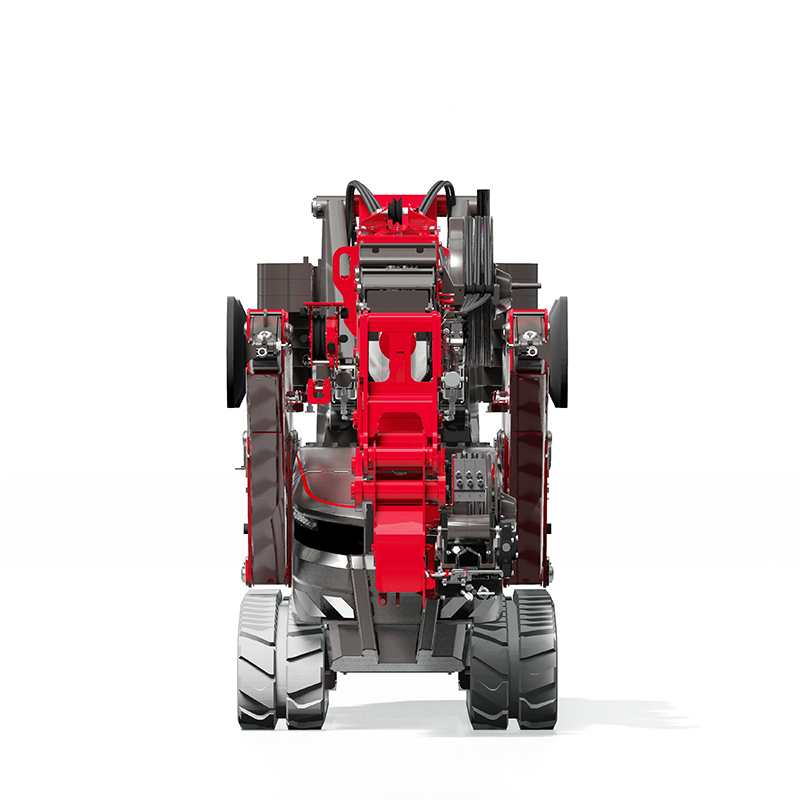

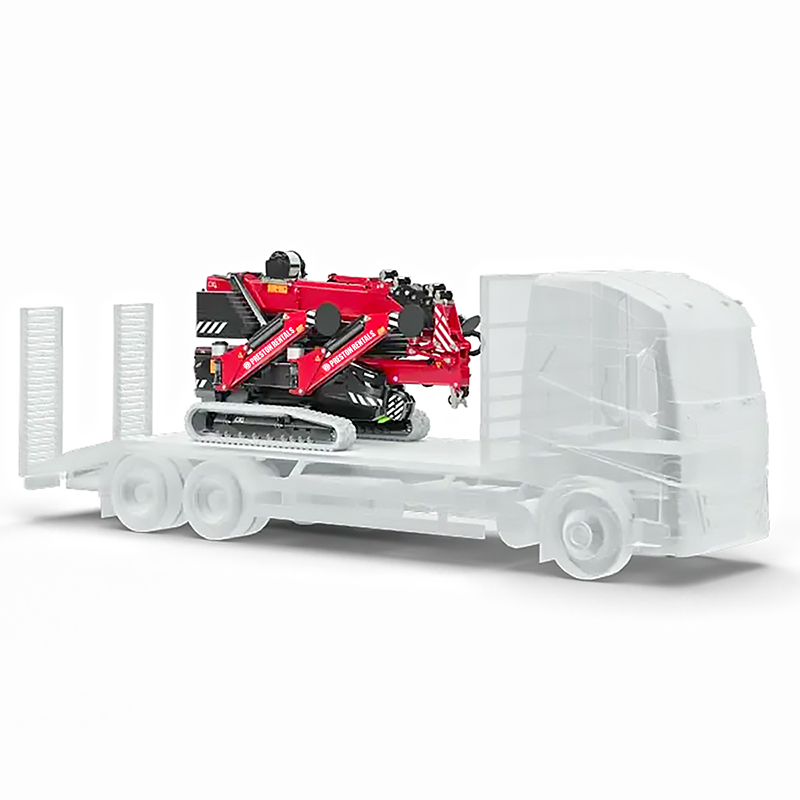

C30e has a compact outrigger, making it particularly short lengthwise. The transport height remains at two metres as the Fly Jib fits into the centre of the machine.
Rent SuperCrane™ C30e compact crane at Preston Rentals - fast delivery!
This makes the C30e strong:

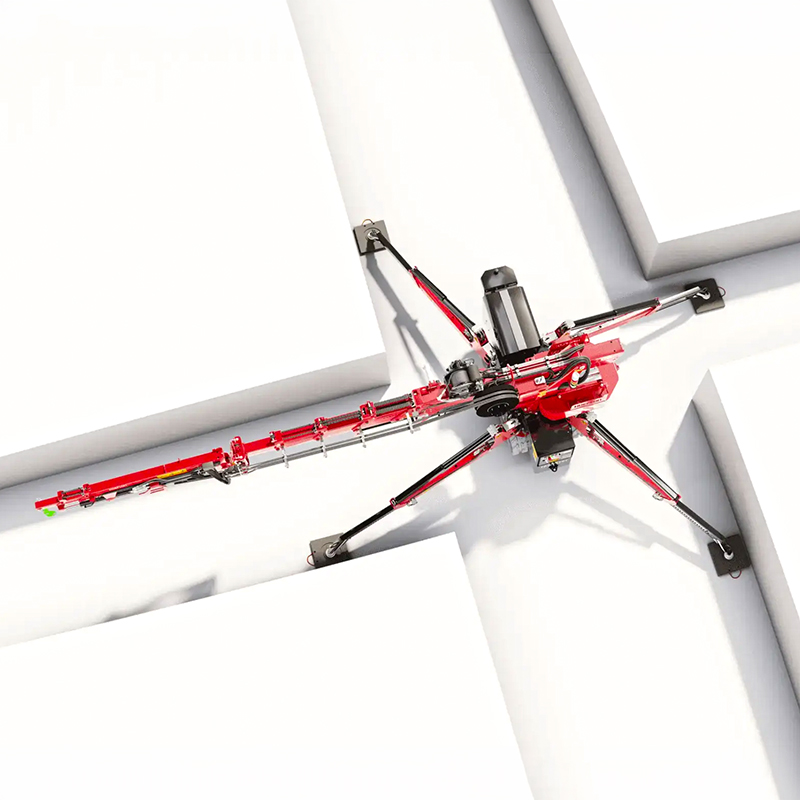

- Stepless support leg positioning
- Extendable and variable supporting legs
- Endless rotation
- Can pass through a double door
- Lithium crane
- Loaded driving
- Simple control
Specifications
Capacity:
9000 kg
Maximum outreach:
12.2 m with fly-jib 20 m
Maximum lifting height:
14.5 m with fly-jib 22 m
Transport dimensions
3.85 m x 1.2 m x 2 m
Total weight:
5600 kg - including options 8700 kg
Engine:
Electric, lithium battery
Inclination range::
20°
Ground pressure:
0.79kg/cm2
Equipment
Electric motor:
230 V, 400 V
Fly jib:
7.5 m
Winch:
40 m
Tracks:
non-marking
Can be used with MultiTool.
