MultiTool
Mount your crane for all types of tasks
MultiTool offers a combination of functions as an extension to the Hoeflon compact cranes. With MultiTool, most types of beams, pipes, sheets of glass and pallets can be easily put in the right place. If your task requires a completely special and unique fittings, this can be designed
MultiTool has been developed in close cooperation with users from the field. This results in products that are in a class of their own. The many functions and details provide the user with many new possibilities and conveniences in daily use.
Rent MultiTool at Preston Rentals.
Unique features:
- Various attachments
- Compatible with the Hoeflon C6, C10 and C30e cranes

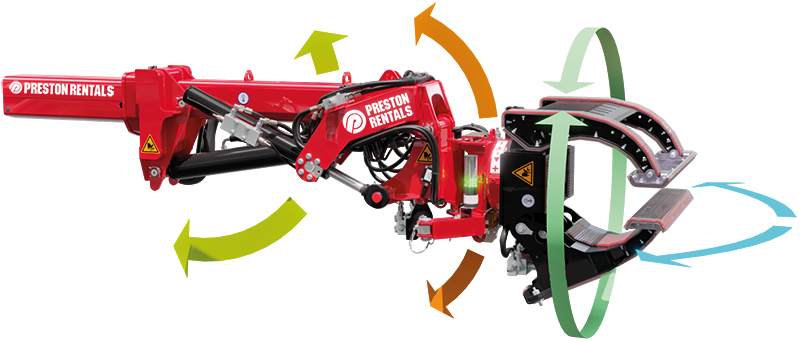

- Outstanding rotational axes
MULTICLAW

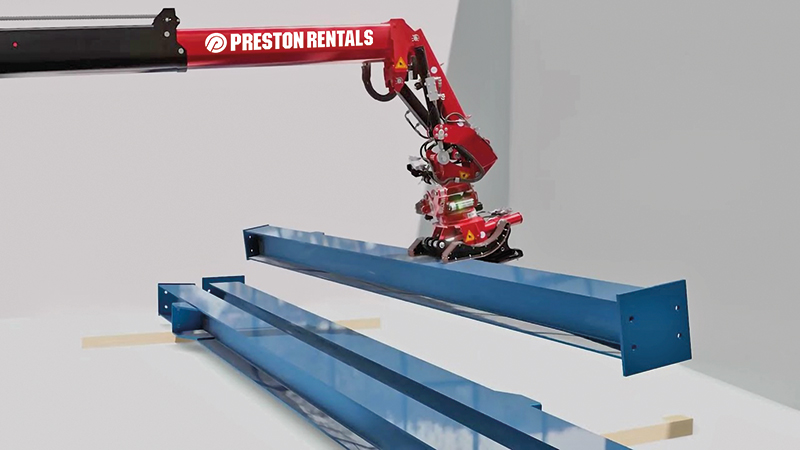

Multiclaw with clamping jaws for clamping and moving beams, etc. These clamping jaws can lift pipes with a diameter of up to 500 mm.
The beam clamp consists of a narrow jaw with a single clamping element and a wide jaw with a double clamping element. Objects of various shapes can be clamped in these jaws.

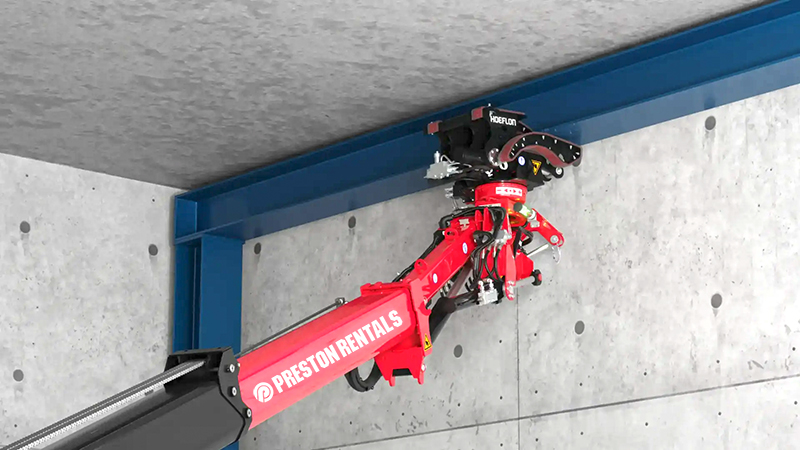

Removable clamping plates increase the clamping surface and allow clamping an object parallel to the jaws. Without the clamping plates, it is also possible to clamp a plate or a beam on the outside of the clamping jaw.
Specifications
| Weight of Multiclaw including clamping jaws: | 340 kg |
| Weight of clamping jaws: | 188 kg |
| Pipe diameter, beam clamp: | 500 mm |
| Maximum lifting capacity of beam clamp: | 1250 kg |
| Lifting capacity, eye: | 2000 kg |
MULTIVAC

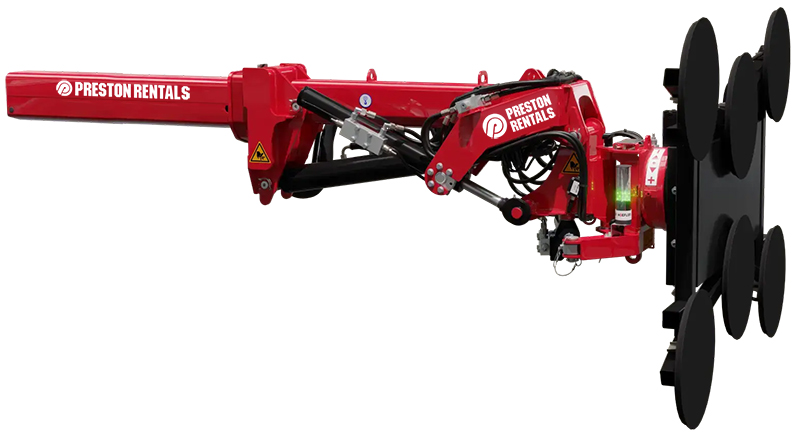

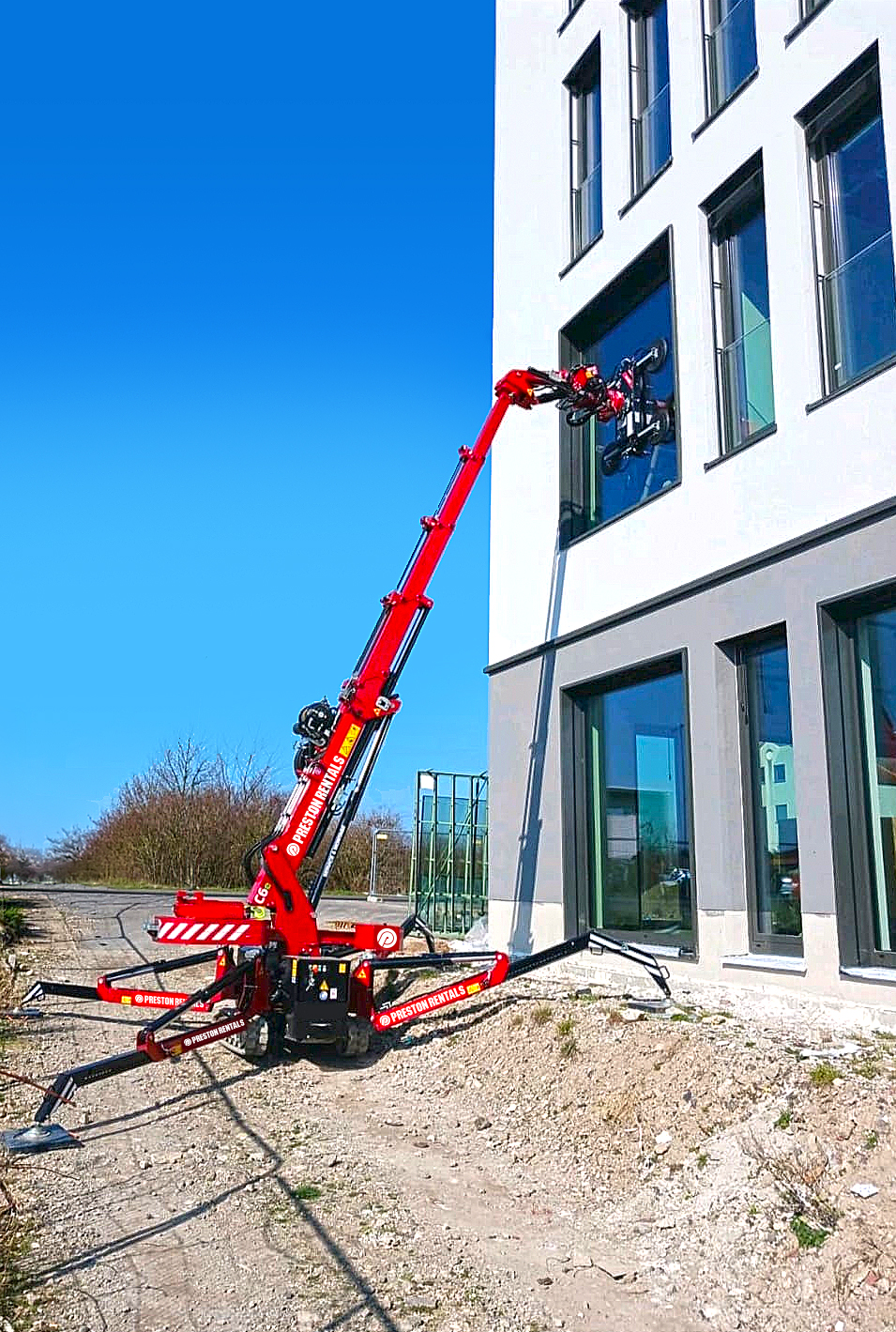

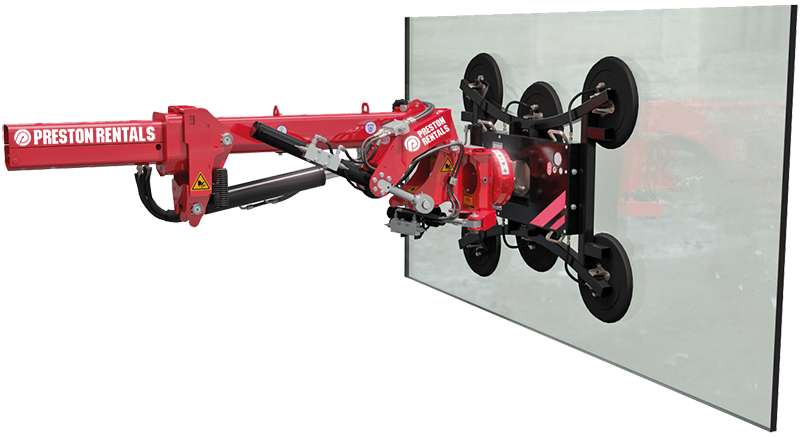

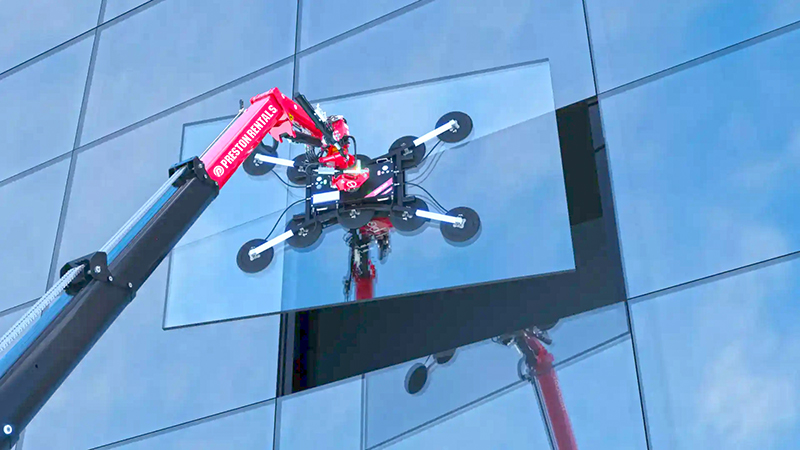

The glass suction lifter is a vacuum lifter for positioning and moving medium to large, flat, and non-porous sheets of glass.
Glass suction lifters are attached to the MultiTool via an adapter.
This unit has the same freedom of movement as the beam clamp (Multiclaw).
Specifications
| Weight, MultiTool including glass suction lifter: | 198 kg |
| Machine weight: | 85 – 110 kg |
| Maximum lifting capacity: | 1000 kg |
| Lifting capacity, eye: | 2000 kg |
| Type of glass suction lifters: | C600, S600, S800, S1000 |
MULTIFORKS

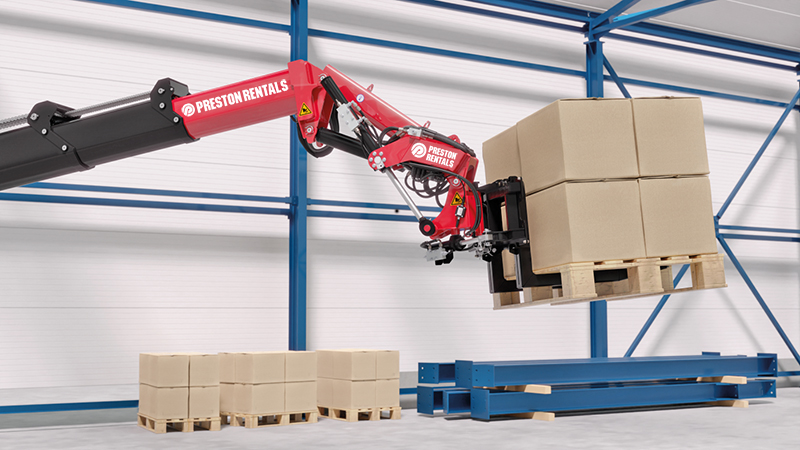

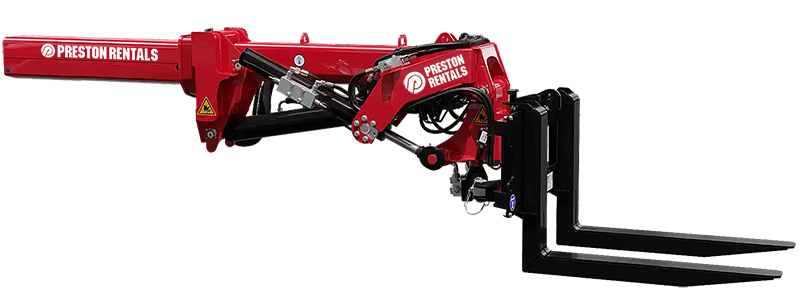

The MultiForks pallet fork frame can be mounted on the MultiTool for lifting and moving pallets.
The long reach of the compact crane allows for placing pallets in high and hard-to-reach places.
MultiForks can only be used with the C30e.
Specifications
| Weight of pallet fork frame including tines: | 64 kg |
| Weight, MultiForks including pallet fork frame: | 216 kg |
| Maximum lifting capacity: | 2000 kg |
| Fork length: | 800 mm |
Download product sheet MultiTool
