Ganterud L3
Remote levelling stall
Proven and robust technology
Ganterud L3, remote-controlled precision leveling that reduces your installation time and increases safety on the construction site.
Ganterud L3

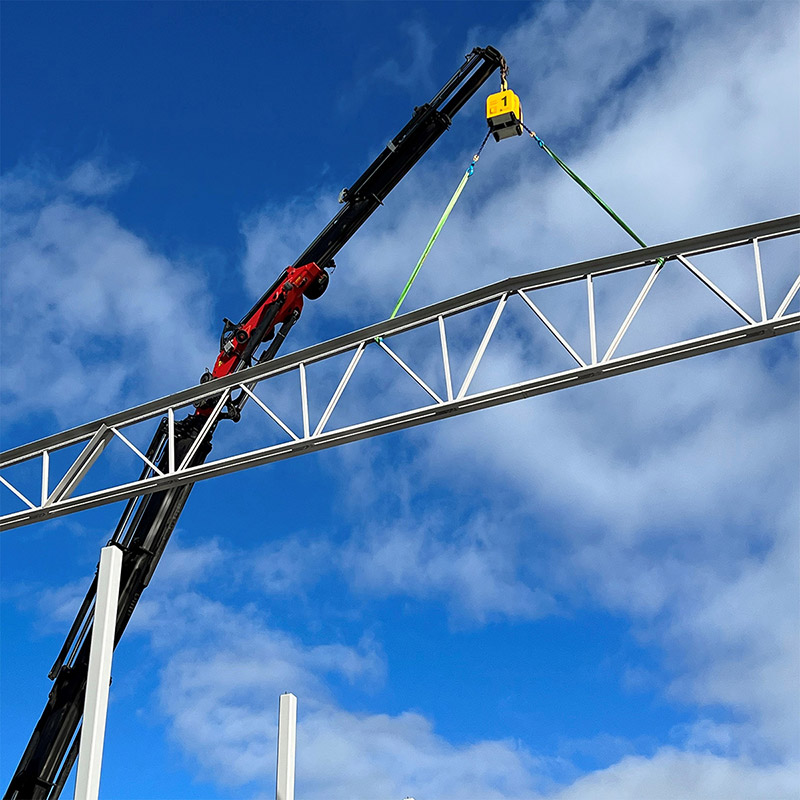

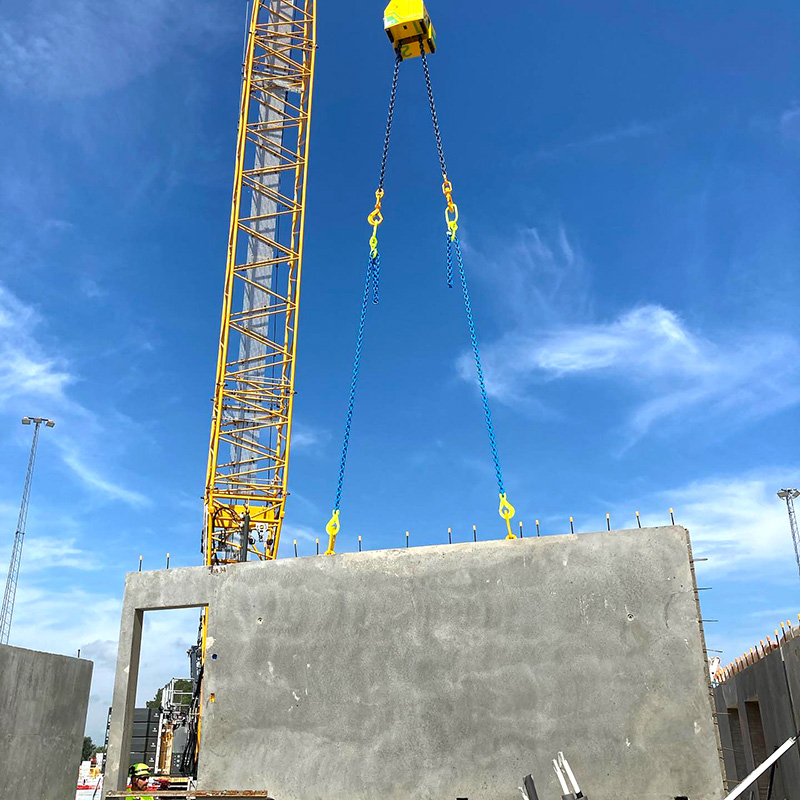

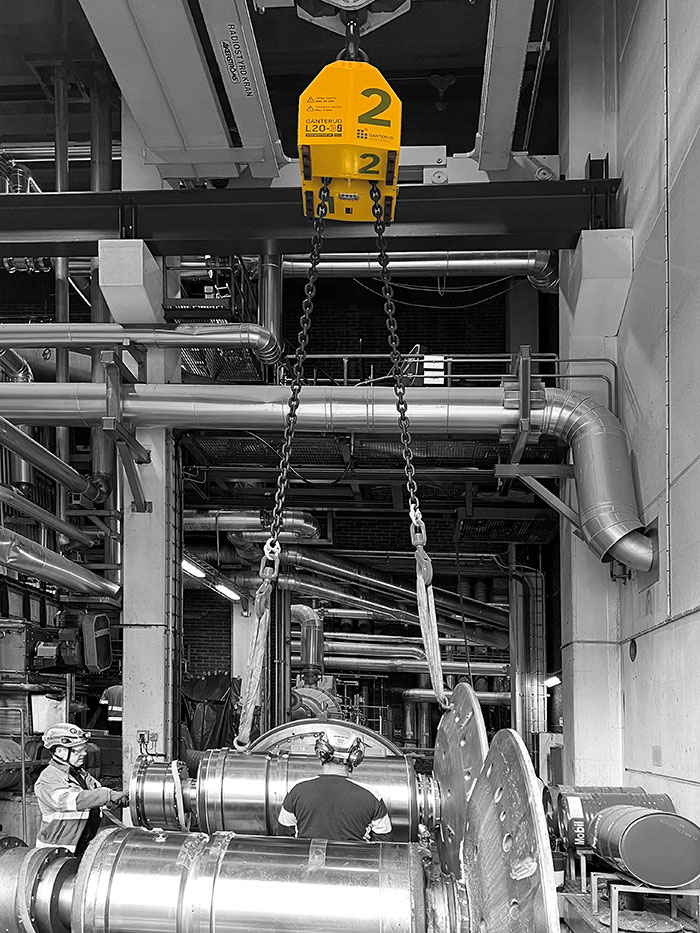

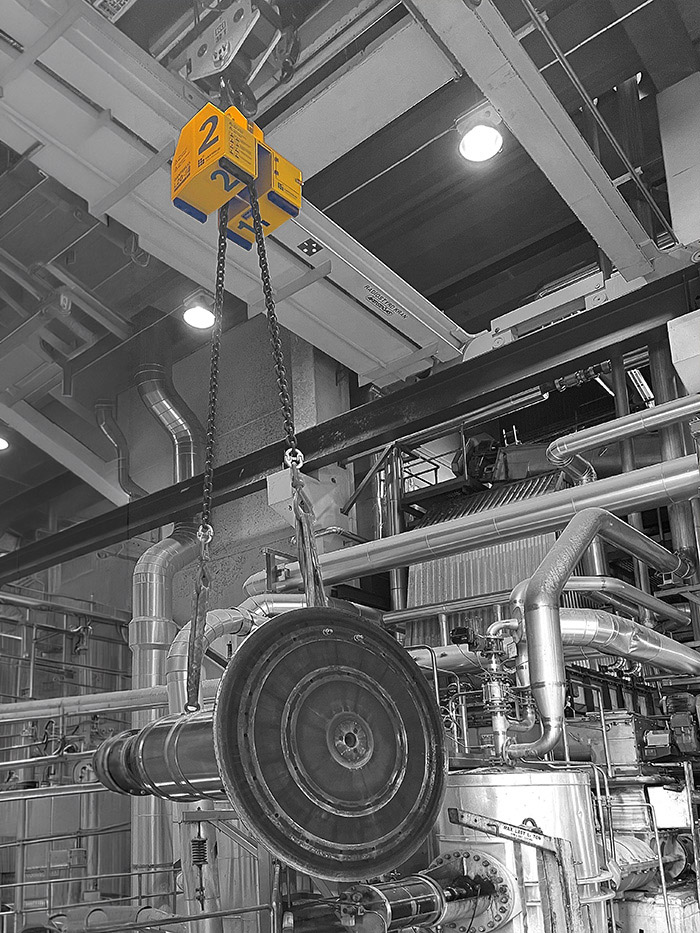

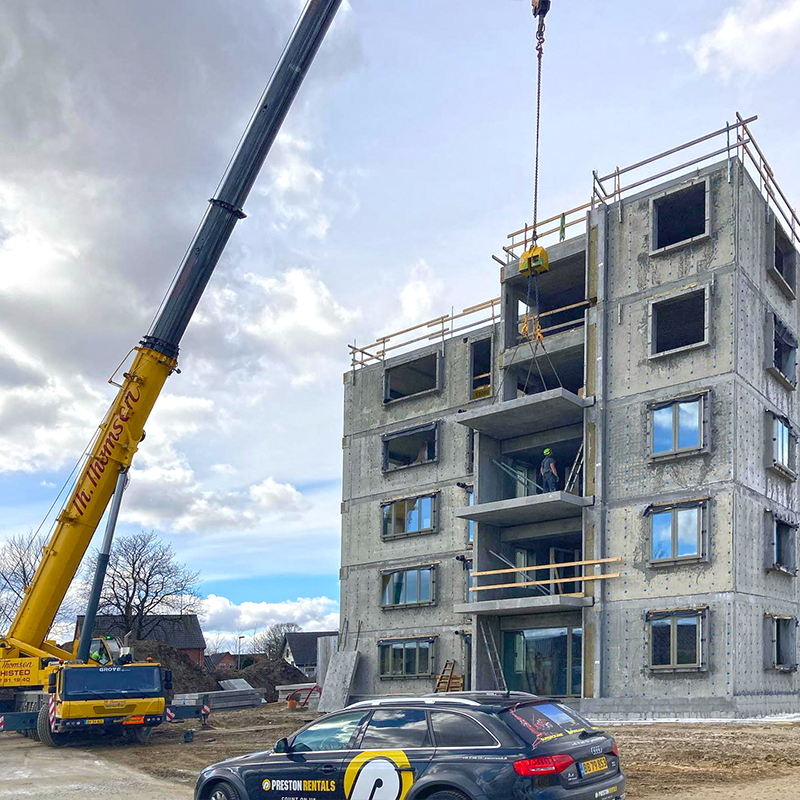

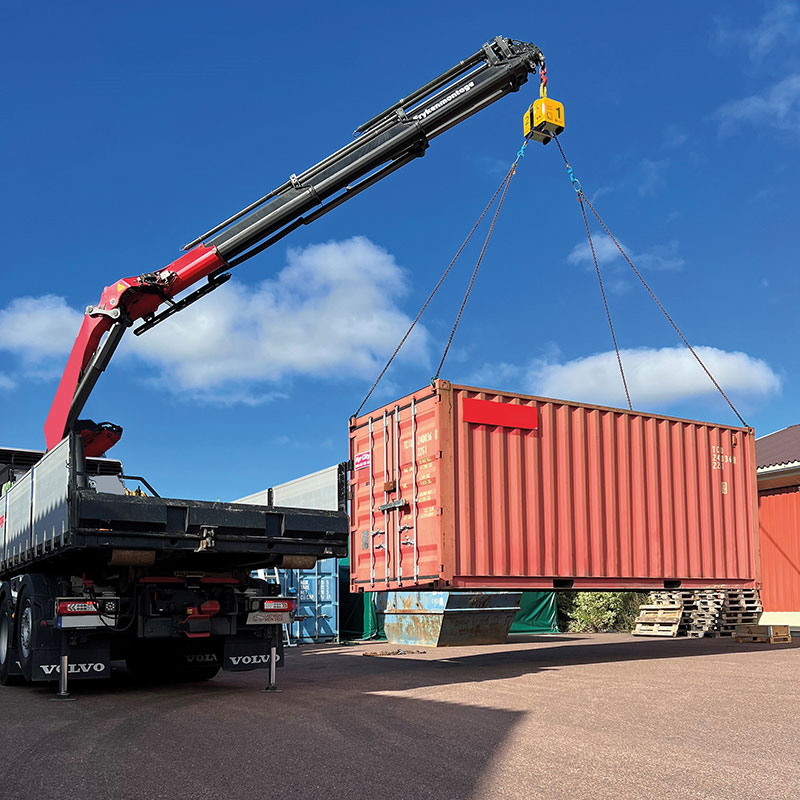

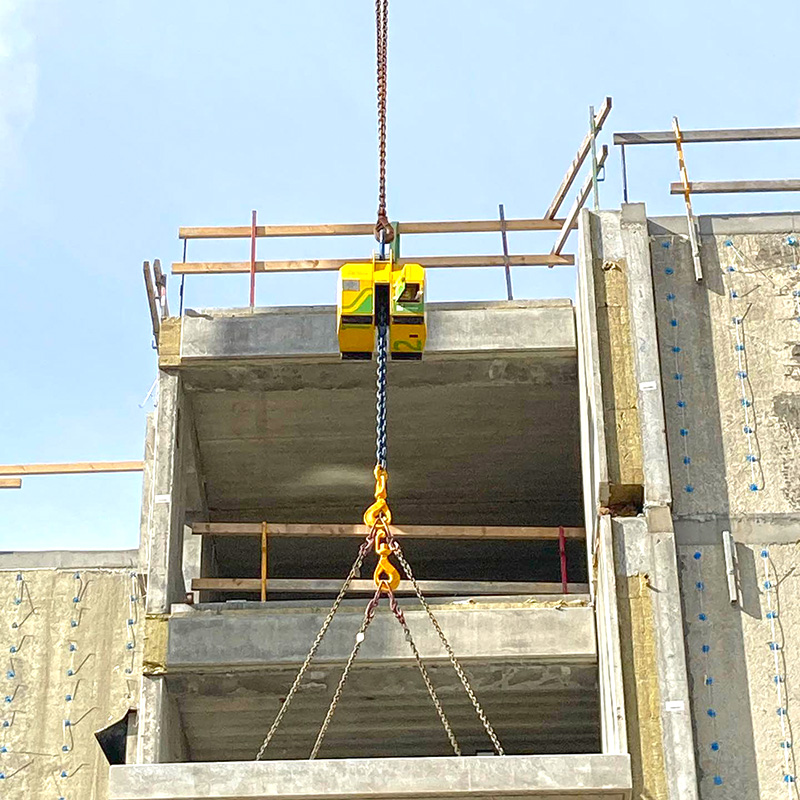

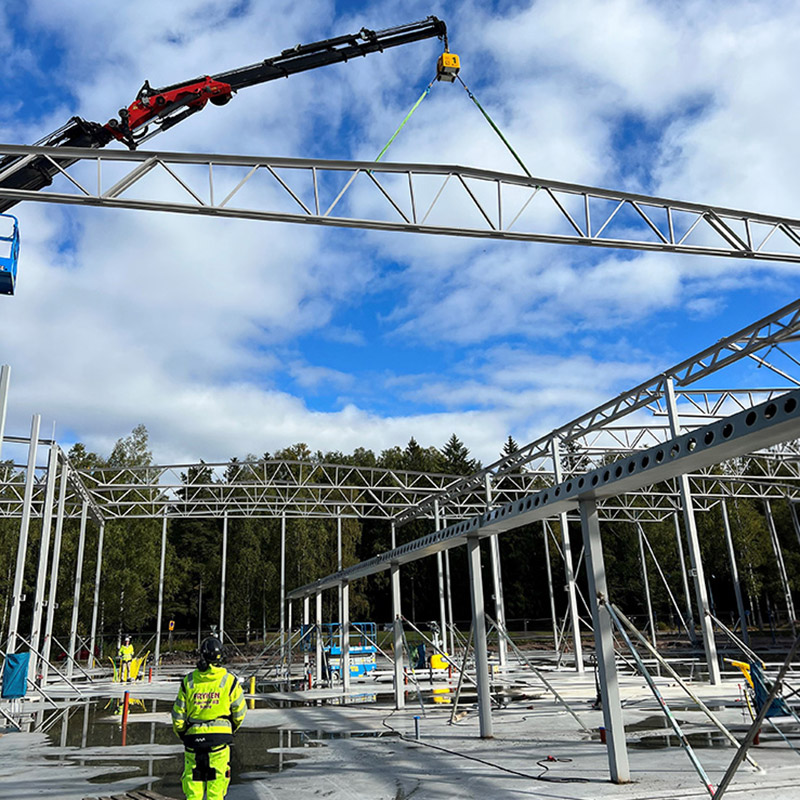

Ganterud L3 lifting yoke levels and handles building materials easily and safely with a simple press of a button. It ensures that you reduce costly crane time and waiting time. The lifting beam handles both light and heavy objects weighing up to 3 tons.
With its robust and thoroughly tested technology and reliable electric operation, the L3 is capable of functioning in temperatures ranging from -20°C to +40°C. The lifting yoke is easily maintained due to its robust cabinet and its IP65 classified electric system.
Ganterud L3 requires minimal service - only cleaning and battery charging. The battery status is displayed. Under normal use, it is sufficient to charge the battery once a week. Due to its user-friendly IP67-classified remote control, the L3 is easy to operate.

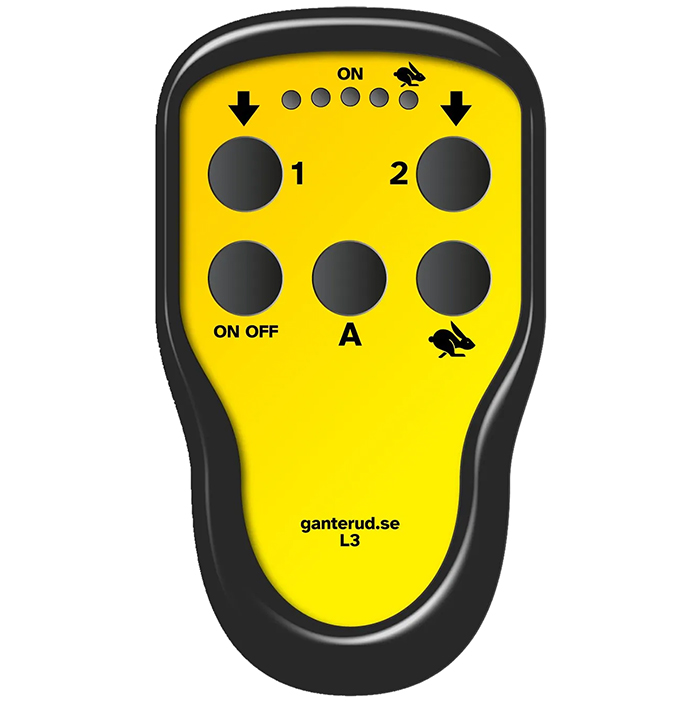

User-friendly remote control
The Ganterud L3 is easy to operate with its user-friendly IP67 rated remote control.
Rent remote-controlled leveling hoists Ganterud L3 here at Preston Rentals.
Ganterud L3 makes heavy and difficult levelling work easy
Specifications
Lifting capacity: Max 3 tons
Levelling force: Max 500 kg
Max levelling stroke length: 3 m (1.5 m in both directions)
Levelling speeds: 2
Max chain angle: 60° with a 3-ton load
Total chain length: 3 m
Chain dimensions: 30.5 x 10 mm
Own weight: 126 kg (incl. chain and hooks)
Height: 638 mm
Width: 503 mm
Depth: 495 mm
Control system
Radio range: 100 m line of sight
Motor voltage: 24v DC
Power consumption in hibernate mode: 50 mA
Max continuous power consumption: 24 A
Peak power consumption: 30 A
Environmental requirements
Operating temperature: -20 – +40 °C
Storage temperature: -20 – +45 °C
Relative humidity, RH: 0 - 90% during storage
Certification: CE-marked product
Optional accessories
- Protective hood
- Chain kit in other lengths
- Additional batteries
- Transport packaging.
Contact us if you have any other requests.
