Ganterud L5
Radio-controlled
precision leveling
and handling
Ganterud L5 is a lifting yoke that, by utilising both new and proven technology, levels and handles loads efficiently and safely with high precision.
The Ganterud L5 lifting yoke can handle both light and heavy objects up to 5 tons. It maximises efficiency, reduces assembly time, and increases safety with precise and comprehensive levelling and handling of various types of objects. The Ganterud L5 has a reversible stroke length of up to 1.5 metres per hook in the standard version.
With a push of a button, the Ganterud L5 simply and safely levels and handles its objects, reducing both costly crane time and waiting time. A robust and well-tested technology as well as a safe electrical operation means that the lifting yoke can operate in all kinds of weather from -20 to +40° Celsius in demanding environments.
The robust, durable and reliable cabinet including the IP65-classified electrical system make the lifting yoke easy to clean. Apart from cleaning, battery charging is the only thing to think about. Battery status is indicated on the yoke, and with normal use one charge per week is required.
The Ganterud L5 is used as a snatch block. With a user-friendly and IP67-classified remote control, the MiniMax L5 is manoeuvred smoothly. The chain wheel is disengaged with the remote control for free-running chain with the same function as a snatch block. A longer chain package can be ordered as an option.
Rent remote-controlled levelling hoists here at Preston Rentals.

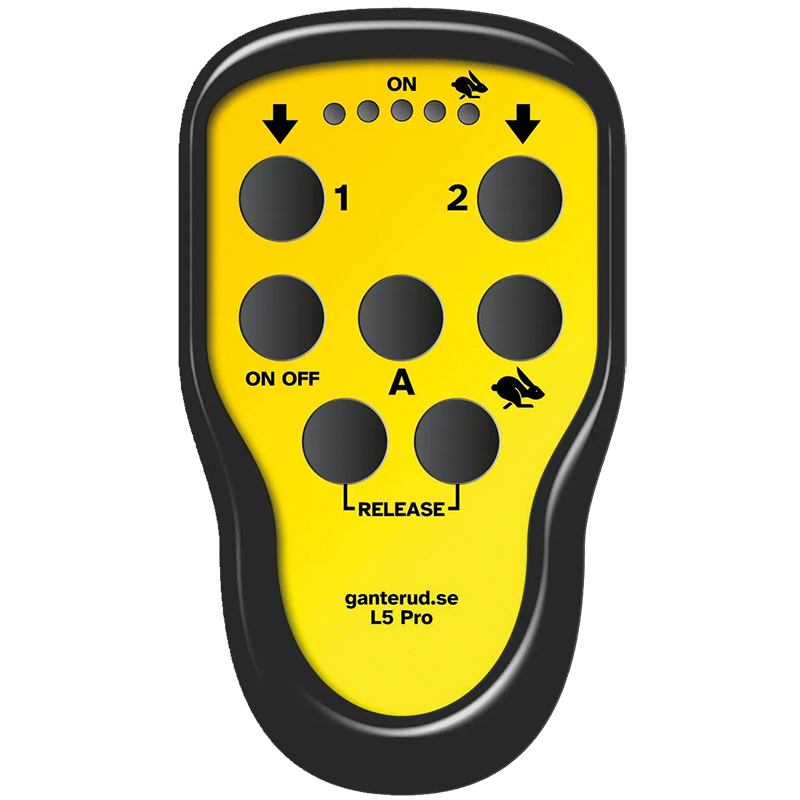

User-friendly remote control
With a user-friendly and IP67-classified remote control, the Ganterud L5 is maneuvered in a flexible way.
Apart from cleaning, battery charging is the only thing that needs to be thought about. Battery status is indicated on the yoke, and with normal use one charge per week is required.
Contact us to hear more about this levelling hoist.
Ganterud L5 maximizes efficiency, reduces assembly time and increases safety
Specifications
| Lifting capacity: | Max 5 tons |
| Levelling force: | Max 750 kg |
| Max. levelling length | 3 m (1.5 m in both directions) in the standard version |
| Levelling speeds: | 2 |
| Max chain angle: | 60° at 5 tons load |
| Total chain length: | 3 m in the standard version |
| Chain dimensions: | 30.5 x 10 mm |
| Own weight: | approximately 130 kg (Including chain and hooks) |
| Height: | 638 mm |
| Width: | 503 mm |
| Depth: | 495 mm |
| Control system | |
| Radio range: | 100 m line-of-sight |
| Motor voltage: | 24v DC |
| Power consumption in hibernate mode: | 50 mA |
| Max continuous power consumption: | 24 A |
| Peak power consumption: | 30 A |
| Environmental requirements | |
| Operating temperature: | -20 – +40 °C |
| Storage temperature: | -20 – +45 °C |
| Relative humidity, RH: | 0 - 90% during storage |
| Certification: | CE marked product |
Optional accessories
- Protective hood
- Chain kit in other lengths
- Additional batteries
- Transport packaging.
Contact us if you have any other requests.
